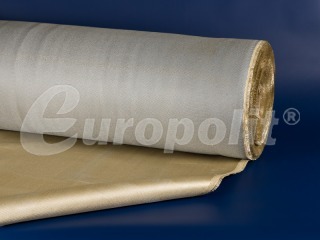

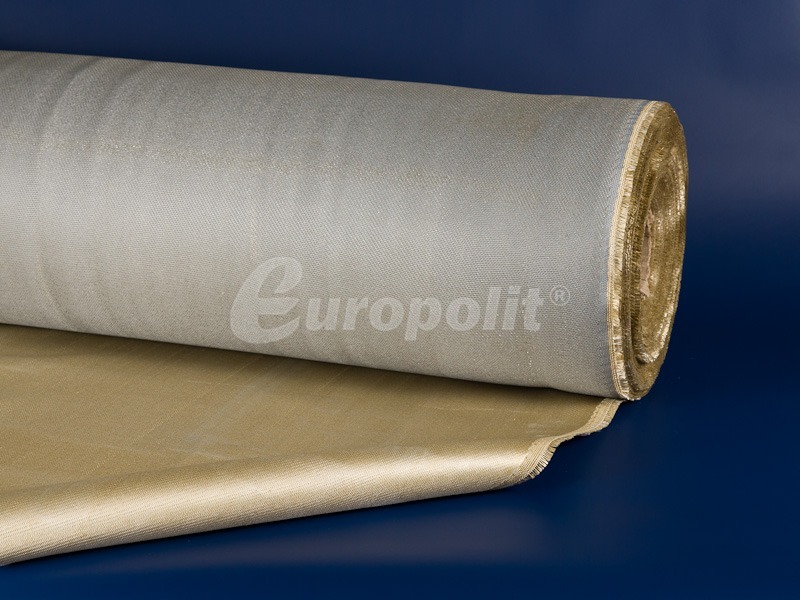

Silica fabric type TK-AR
Silica fabric of TK-AR type is a thermal insulation fabric applied as thermal insulation for all types of machines, devices and systems with contact with high temperatures and where we want to reduce the heat flow. It is used particularly often as thermal screens, insulations in the process of heating welded structures or sleeves of hoses of cables working near heat sources. Silica fabric covered with vermiculite dispersion due to its properties may be applied in contact with ventilation air.
Properties
- no harmful effect on the human body,
- no dusting,
- high mechanic and chemical resistance,
- does not emit toxic substances,
|
DESCRIPTION OF PARAMETER |
VALUE |
|
|
TYPE |
TK-AR |
|
|
Material |
silica yarn + vermiculite dispersion + PU |
|
|
Maximum temporary temperature in °C |
1500 |
|
|
Maximum continuous operation temperature in °C |
950 |
|
|
Fiber melting point in °C |
1600 |
|
|
Type of reinforcement |
- |
|
|
Strand |
cloth, single-layer |
|
|
Maximum losses after roasting as % |
13 |
|
|
Maximum shrinkage as % |
12 |
|
|
Weight in g/m² |
1250 |
650 |
|
Size in mm |
width: ~ 900 |
width: ~ 900 |
|
Colour |
golden – brown |
|
50 rm roll
