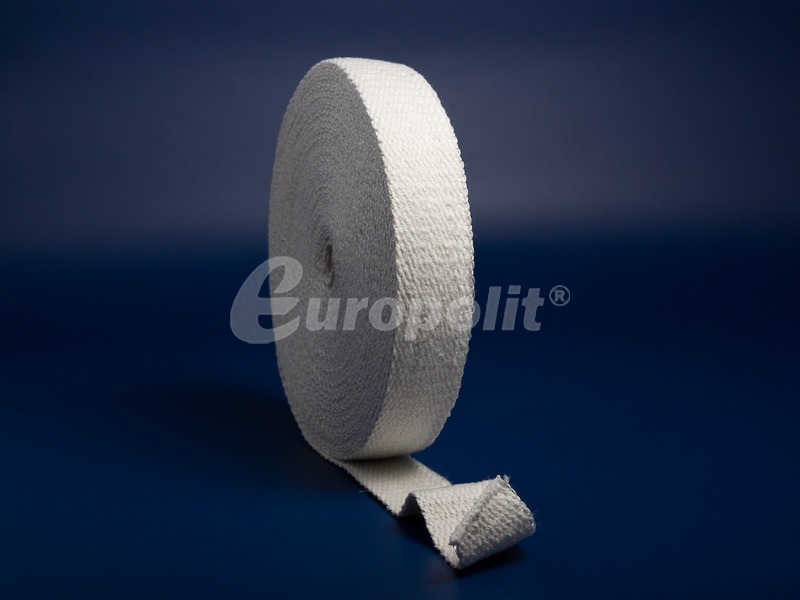

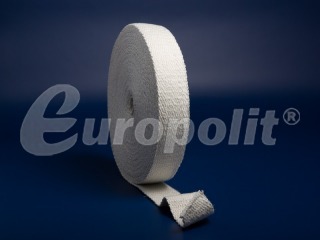

Reinforced ceramic tapes type TCZ, TCZ/P, TCZ/C, TCZ/CP

The ceramic tape of type TCZ is woven of high quality ceramic yarn reinforced with an inconel wire. Depending on thickness, single- or multi-layer strand is used. Optionally, tapes can be equipped with a self-adhesive layer (types with the letter "P"). The product contains approximately 18% of organic fibres which, in the first period of operation, may burn-out without losses for key operation parameters.

Insulation tapes are applied as thermal insulations for all types of machines, devices systems with contact with high temperatures and where we want to reduce the heat flow. Particularly often they are used as thermal screens, insulations in the process of heating welded structures or sleeves of hoses or cables working near heat sources.

DESCRIPTION OF PARAMETER

VALUE

TYPE

TCZ, TCZ/P

Material

ceramic reinforced yarn

Maximum temporary temperature in °C

1200

Maximum continuous operation temperature in °C

1100

Type of reinforcement

wire CrNi ø 0,1 mm

Strand

cloth, single-layer or multi-layer

Maximum losses after roasting as %

18

Maximum shrinkage as %

3

Density in g/cm3

0,5 ± 15 %

Colour

white

Dimensional range in mm

width: 8 – 500
thickness: 2 – 10

TCZ/P – self-adhesive
TCZ+P – PTFE impregnated
TCP/G – hatch tape reinforced with Cu with PTFE impregnation and graphite

roll at least 50 rm



europolit
