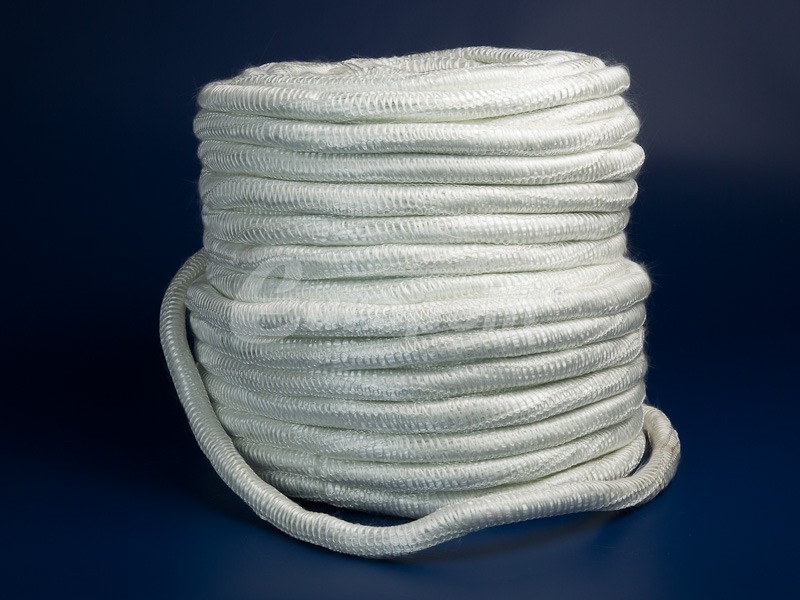

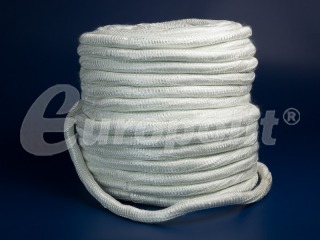

Insulation ropes in KEMAFIL overbraided type ESK and ECK

The rope of ESK type is built from the core of glass rowing overbraided with rare netting of glass silk, while in ECK rope, glass rowing has been replaced by ceramic yarn reinforced with inconel. This type of structure allows to obtain a rope with sufficiently dense construction, at the same time, being very soft and flexible. Insulation ropes in the braid of type KEMAFIL type are the cheapest sealing offered by us used for thermal insulation purposes.

DESCRIPTION OF PARAMETER

VALUE

TYPE

ECK

ESK

Quality of workmanship

KEMAFIL braid

KEMAFIL braid

Material

aluminosilicate yarn

glass yarn

Maximum temporary temperature in °C

1200*

650

Maximum continuous operation temperature in °C

1100*

500

Minimum use temperature in °C

- 100

- 100

Type of reinforcement

wire CrNi ø 0,1 mm

-

Maximum losses after roasting as %

18

3

Maximum shrinkage as %

3

3

Density in g/cm3

0,4 ± 15 %

0,5 ± 15 %

Colour

white

white

Dimensional range in mm

10 – 25

10 – 25

* braid of glass fibre will undergo degradation at temperatures above 500°C.
