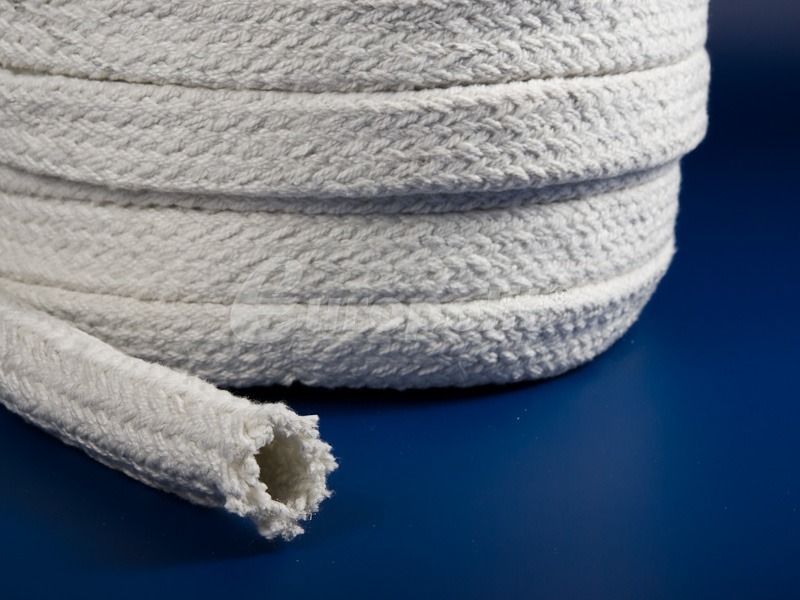

Ceramic sleeve type ECW-K

The sleeve of ECW-K type is produced from aluminosilicate yarn without reinforcement, which enables its use for insulation of live ducts. Ceramic sleeves are an excellent material for thermal insulation of hot elements in various types of industrial systems. Sleeves with the diameters up to 50 mm are produced on braiding machines, while larger diameters - on special looms for multi-layer fabrics, which gives excellent material density even at diameters in the range of 500 mm. The main activity area of application is thermal insulation of pipes, heaters and ducts with the maximum operating temperature specified in the table below.

DESCRIPTION OF PARAMETER

VALUE

TYPE

ECW-K

Type of fibre

ceramic yarn

Wall thickness in mm

2 – 3

Maximum temporary temperature in °C

800

Maximum operation temperature in °C

650

Type of reinforcement

-

Maximum losses after roasting as %

18

Maximum shrinkage as %

3

Colour

white

Dimensional range in mm

10 - 500

roll at least 50 rm



europolit

Ask about product
